POE DC12v-48v 1000Mbps Gigabit Single port Passive POE Injector Power Adapter Module Accessories

Get a Price/Quote

POE DC12v-48v 1000Mbps Gigabit Single port Passive POE Injector Power Adapter Module Accessories Specification

Water Resistance
NO

Accessories Type
POE Injector

No Of Ports
2

Model
Gigabit Passive POE

Connectivity Type
Wired

Size
Compact (exact dimensions not specified)

Voltage
DC 12V-48V

Network Type
Gigabit Ethernet

Part Type
Power Injector Module

Weight
Lightweight (exact not specified)

Port Type
LAN/POE, DC Input

Function
POE

Design
Compact rectangular module

Body Material
Durable plastic housing

Color
White

Accessories
Power Adapter Module

Features
Passive POE, Gigabit Ethernet support

POE Type
Passive (Non-802.3af/at standard)

LAN Ports
1 LAN input, 1 POE output

Output
POE Power and Data combined

Ethernet Speed
1000Mbps (Gigabit)

Compatible Devices
IP Camera, Access Points, Routers, Network Switches

Input Voltage Range
12V to 48V DC

Usage
Power and data transmission for POE compatible devices

Installation
Plug and play, no configuration required

Power Active Indicator
Yes, marked on body

DC Connector Size
Standard DC barrel jack

POE DC12v-48v 1000Mbps Gigabit Single port Passive POE Injector Power Adapter Module Accessories About

Product description

Products Description

POE power supply module parameters

DC: 12-48V/DC 2A [internal+, external -]
POE ports: 4 5+/7 8-; 12345678 signal
LAN port: 12345678 signal
Port: Standard RJ45
Transmission rate: 10/100/1000Mbps

1. The POE power supply module supports various DC power inputs. The power adapter can be connected to the POE power supply module according to the voltage required by your POE network equipment. The DC power supply can be loaded into the RJ45 Ethernet power supply port through the POE power supply module to power the network equipment without POE function.
(Refer to the following applications)
Mode 1: network equipment without POE function

POE module and power supply use (4/5; 7/8) Pin transmission technology to operate.
& nbsp; & nbsp; The POE module has a simple wall-mounted and simple connection mode, which provides a better solution for the difficulty of setting up power supply, provides a simple erection mode for complex environment and saves unnecessary wiring costs& nbsp;

Mode 2: network equipment with POE function

a. It can pass voltage DC 5 48V, current 1000ma

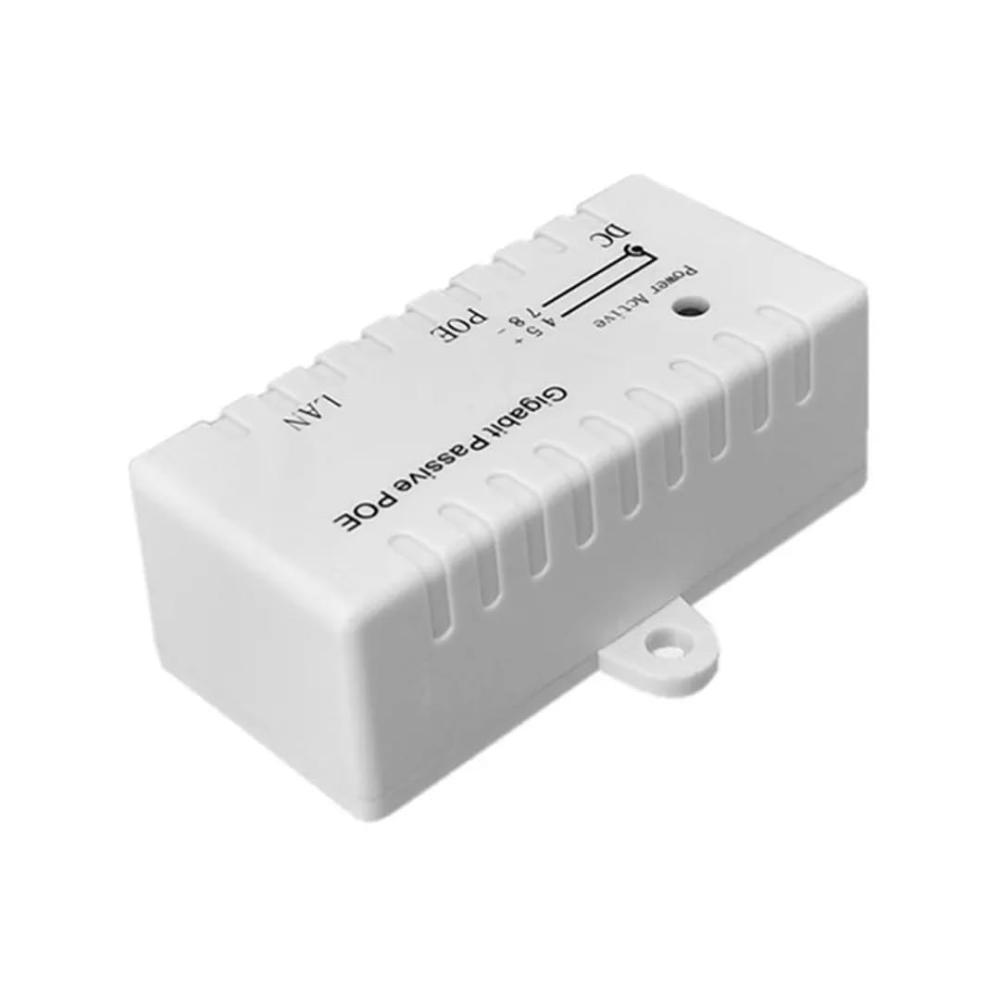

& nbsp; & nbsp; B. It can be fixed on the wall with self-tapping screws
& nbsp; & nbsp; C. LED lamp display ensures voltage and current
POE port = power supply (45+ 78-)+ data (12345678)
LAN Port = Data (12345678)
POE port: connect the bridge AP CPE device WAN interface
LAN port: connect to the router switch or directly connect to the computer host network interface

Efficient Power and Data Transmission

This injector combines data and power using a single LAN cable, streamlining your installation process for IP cameras, wireless access points, routers, and switches. Supporting up to gigabit ethernet speeds, it delivers fast, reliable connections ideal for modern network environments.

Simple Plug-and-Play Operation

Installation is quick and straightforward. The module requires no configuration-simply plug it into your devices using the standard DC barrel jack and LAN/POE ports for instant operation. The compact plastic housing makes it suitable for tight spaces and temporary or permanent installations.

Versatile Voltage Input Range

With a wide input voltage range from 12V to 48V DC, it adapts to various power sources available in office, home, or industrial environments. The passive POE design offers flexibility, making it compatible with numerous non-standard POE devices requiring direct power feed.

FAQ's of POE DC12v-48v 1000Mbps Gigabit Single port Passive POE Injector Power Adapter Module Accessories:

Q: How do I install the Gigabit Passive POE Injector Module?

A: Installation is straightforward-simply connect your power source (12V-48V DC) to the DC input, plug your Ethernet cable from your LAN switch or router to the LAN input port, and then connect your POE-compatible device to the POE output port. No configuration is necessary; just plug and play.

Q: What devices can I use with this passive POE injector?

A: This injector is compatible with devices that accept passive POE, such as IP cameras, wireless access points, routers, and network switches. Please make sure your device supports passive POE within the specified voltage range before connecting.

Q: What is the main benefit of using a passive POE injector over a standard POE switch?

A: A passive POE injector offers a cost-effective solution to provide both power and data over a single cable without the need for advanced network management or standardized POE protocols, making it ideal for simple or small-scale deployments.

Q: Does this POE injector support gigabit ethernet speeds?

A: Yes, it supports 1000Mbps (Gigabit) speeds, ensuring that your network devices receive both fast data transfer and reliable power through one cable.

Q: When should I use a passive POE injector instead of an active (802.3af/at) injector?

A: Use this passive POE injector when your devices specifically require or support passive POE and power up directly from the supply voltage (12-48V DC), rather than standardized POE protocols. It is particularly suitable for compatible surveillance and wireless equipment.

Q: How do I know the power is active when using the module?

A: The module features a clear power active indicator marked on the body, letting you easily confirm when power is supplied to your connected POE device.

Q: Is this POE injector water resistant and where should it be installed?

A: This injector is not water resistant; it is designed for indoor use and should be installed in a dry environment to ensure reliable operation and safety.
